Convert XML Schema (XSD) to JSON Schema: A Comprehensive Guide

|

Shreya Srivastava

|

Mar 18, 2025

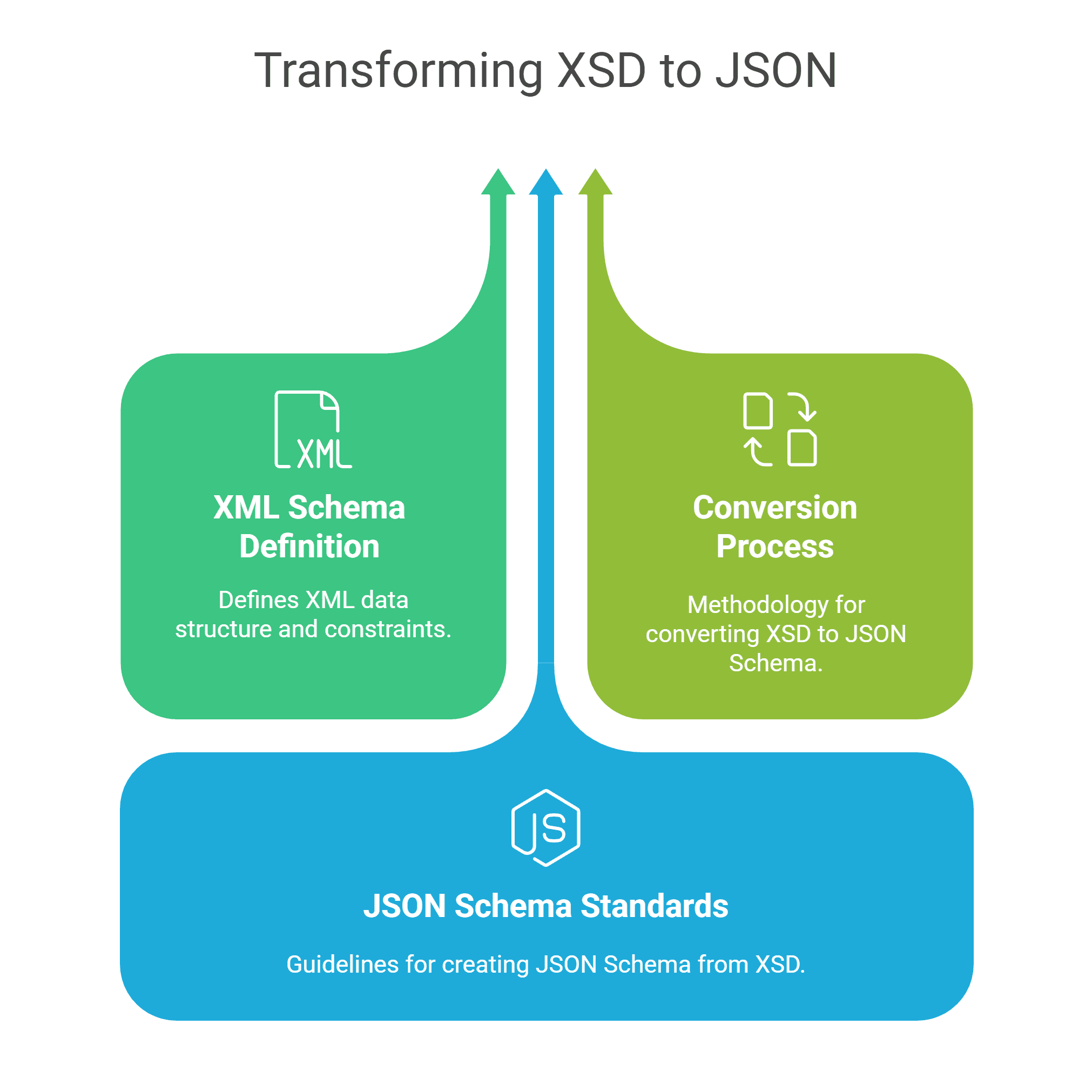

Transforming XSD to JSON

In today's interconnected digital landscape, organizations frequently need to bridge the gap between different data representation formats. XML, once the dominant format for structured data exchange, now often coexists with JSON, which has become the preferred format for web APIs and modern applications. This coexistence creates a specific challenge: how to effectively translate XML Schema (XSD) definitions to their JSON Schema counterparts while preserving validation rules and semantic meaning.

Converting between these schema languages is not merely a syntax transformation. Each schema language emerged from different design philosophies and addresses distinct use cases. XML Schema, standardized by W3C, offers rich validation capabilities with strong typing and complex content models. JSON Schema, while less mature, provides a more lightweight approach to validation that aligns well with JavaScript object structures.

This guide will walk you through the process of converting XML Schema to JSON Schema, covering both manual mapping techniques and automated tools. Whether you're modernizing legacy systems, creating dual-format APIs, or migrating to JSON-based architectures, understanding how to translate between these schema languages effectively is a valuable skill in today's diverse technology ecosystem.

Understanding the Two Schema Languages

Before diving into conversion techniques, it's essential to understand the fundamental characteristics of both XML Schema and JSON Schema.

XML Schema (XSD)

XML Schema Definition (XSD) is a W3C recommendation that defines the structure, content, and semantics of XML documents. Key components include:

  • Elements and attributes: Define the structure of XML documents

  • Simple and complex types: Define the content models and validation rules

  • Namespaces: Allow for modular and reusable definitions

  • Inheritance: Support for type extension and restriction

  • Strong typing: Built-in datatypes and derivation mechanisms

  • Schema composition: Include, import, and redefine mechanisms

XSD follows a class-based type system where elements are instances of types, distinguishing between simple types (containing only text) and complex types (containing elements, attributes, or mixed content).

<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
  <xs:element name="person">
    <xs:complexType>
      <xs:sequence>
        <xs:element name="firstName" type="xs:string"/>
        <xs:element name="lastName" type="xs:string"/>
        <xs:element name="age" type="xs:positiveInteger"/>
        <xs:element name="email" type="emailType" minOccurs="0"/>
      </xs:sequence>
      <xs:attribute name="id" type="xs:ID" use="required"/>
    </xs:complexType>
  </xs:element>

  <xs:simpleType name="emailType">
    <xs:restriction base="xs:string">
      <xs:pattern value="[^@]+@[^\.]+\..+"/>
    </xs:restriction>
  </xs:simpleType>
</xs:schema>

JSON Schema

JSON Schema is a vocabulary that allows you to annotate and validate JSON documents. Key components include:

  • Properties: Define the structure of JSON objects

  • Types: Specify the data type of values (string, number, object, array, boolean, null)

  • Validation keywords: Constrain values (minimum, maximum, pattern, etc.)

  • Logical composition: allOf, anyOf, oneOf, not keywords

  • Reusability: Definitions and references

  • Annotations: Title, description, and other metadata

JSON Schema follows a property-based approach where validation rules are attached to properties rather than types.

{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "type": "object",
  "properties": {
    "id": { "type": "string" },
    "firstName": { "type": "string" },
    "lastName": { "type": "string" },
    "age": { "type": "integer", "minimum": 1 },
    "email": {
      "type": "string",
      "pattern": "[^@]+@[^\.]+\..+"
    }
  },
  "required": ["id", "firstName", "lastName", "age"],
  "additionalProperties": false
}

Fundamental Differences

Several key differences make direct translation challenging:

  1. Type systems: XSD uses a class-based type system while JSON Schema uses a property-based approach

  2. Namespaces: XSD has rich namespace support while JSON Schema has limited namespace capabilities

  3. Content models: XSD supports sequence, choice, and all compositors, while JSON Schema primarily uses property constraints

  4. Validation capabilities: XSD has more built-in datatypes and validation facets

  5. Inheritance models: XSD supports complex type inheritance not directly matched in JSON Schema

Understanding these differences is crucial for making appropriate conversion decisions.

Ship bug-free software, 200% faster, in 20% testing budget. No coding required

Key Considerations Before Conversion

Before starting any conversion process, it's important to clarify your goals and understand the potential limitations.

Assessing Your Conversion Needs

Start by answering these key questions:

  1. Purpose of conversion: Are you creating an equivalent validation schema, documentation, or both?

  2. Target audience: Who will use the JSON Schema (developers, automated systems, etc.)?

  3. Validation strictness: Is exact validation equivalence required, or is approximate validation acceptable?

  4. Schema usage: How will the schema be used (client-side validation, server-side validation, code generation)?

  5. Maintenance strategy: Will the schemas need to be kept in sync long-term?

What Can and Cannot Be Directly Translated

Some XSD features translate well to JSON Schema:

  • Simple types and their constraints

  • Element/attribute occurrence constraints

  • Basic patterns and enumerations

  • Documentation

Features that require special handling:

  • Namespaces

  • Complex content models (sequence, choice, all)

  • Mixed content

  • Substitution groups

  • Identity constraints (key, keyref, unique)

Preserving Semantic Equivalence

Semantic equivalence means that the validation rules express the same constraints, even if the syntax differs. This is often more important than maintaining structural similarity between the schemas.

For example, an XSD that requires elements in a specific sequence might be semantically equivalent to a JSON Schema that requires certain properties to be present, regardless of order (since JSON objects don't guarantee property order).

Planning for Schema Evolution

Consider how your schemas might evolve:

  • Will changes originate in the XSD or JSON Schema?

  • How will you propagate changes between schemas?

  • What versioning strategy will you use?

  • How will you communicate breaking changes?

With these considerations in mind, let's explore the practical approaches to schema conversion.

Manual Conversion Approach: Element-by-Element Mapping

For many scenarios, especially when precise control is needed, manual conversion provides the best results. Let's examine how to map different XSD components to JSON Schema.

Mapping Simple Types

XSD simple types map relatively straightforwardly to JSON Schema types:

XSD Type

JSON Schema Type

Additional Constraints

xs:string

string


xs:integer

integer


xs:decimal

number


xs:boolean

boolean


xs:date

string

format: date

xs:dateTime

string

format: date-time

xs:time

string

format: time

xs:anyURI

string

format: uri

Example conversion of a simple type:

XSD:

<xs:element name="count" type="xs:positiveInteger"/>

JSON Schema:

{
  "type": "object",
  "properties": {
    "count": {
      "type": "integer",
      "minimum": 1
    }
  }
}

Handling Complex Types and Nested Structures

Complex types in XSD become objects in JSON Schema:

XSD:

<xs:complexType name="AddressType">
  <xs:sequence>
    <xs:element name="street" type="xs:string"/>
    <xs:element name="city" type="xs:string"/>
    <xs:element name="state" type="xs:string"/>
    <xs:element name="zip" type="xs:string"/>
  </xs:sequence>
</xs:complexType>
<xs:element name="address" type="AddressType"

JSON Schema:

{
  "type": "object",
  "properties": {
    "address": {
      "type": "object",
      "properties": {
        "street": { "type": "string" },
        "city": { "type": "string" },
        "state": { "type": "string" },
        "zip": { "type": "string" }
      },
      "required": ["street", "city", "state", "zip"],
      "additionalProperties": false
    }
  }
}

Converting Attributes to JSON Properties

XML attributes become properties in the JSON Schema:

XSD:

<xs:element name="book">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="title" type="xs:string"/>
      <xs:element name="author" type="xs:string"/>
    </xs:sequence>
    <xs:attribute name="isbn" type="xs:string" use="required"/>
    <xs:attribute name="format" type="xs:string" default="hardcover"/>
  </xs:complexType>
</xs:element>

JSON Schema:

{
  "type": "object",
  "properties": {
    "book": {
      "type": "object",
      "properties": {
        "title": { "type": "string" },
        "author": { "type": "string" },
        "isbn": { "type": "string" },
        "format": {
          "type": "string",
          "default": "hardcover"
        }
      },
      "required": ["title", "author", "isbn"],
      "additionalProperties": false
    }
  }
}

Dealing with Namespaces and Prefixes

Handling namespaces is one of the most challenging aspects of conversion. JSON Schema has limited support for namespaces compared to XSD.

Common approaches include:

  1. Prefixing property names: Add namespace prefixes to property names (e.g., ns1:element)

  2. Using nested objects: Create objects for each namespace

  3. Ignoring namespaces: Simply remove namespace information if not needed

For example, using the nested objects approach:

XSD with namespaces:

<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
           xmlns:book="http://example.org/books"
           xmlns:author="http://example.org/authors">
  <xs:element name="publication">
    <xs:complexType>
      <xs:sequence>
        <xs:element ref="book:title"/>
        <xs:element ref="author:name"/>
      </xs:sequence>
    </xs:complexType>
  </xs:element>
</xs:schema>

JSON Schema:

{
  "type": "object",
  "properties": {
    "publication": {
      "type": "object",
      "properties": {
        "book": {
          "type": "object",
          "properties": {
            "title": { "type": "string" }
          },
          "required": ["title"]
        },
        "author": {
          "type": "object",
          "properties": {
            "name": { "type": "string" }
          },
          "required": ["name"]
        }
      },
      "required": ["book", "author"]
    }
  }
}

Preserving Cardinality Constraints

XSD's minOccurs and maxOccurs attributes map to different JSON Schema constraints depending on context:

XSD with cardinality:

<xs:element name="book">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="title" type="xs:string"/>
      <xs:element name="author" type="xs:string" maxOccurs="unbounded"/>
      <xs:element name="review" type="xs:string" minOccurs="0" maxOccurs="5"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

JSON Schema:

{
  "type": "object",
  "properties": {
    "book": {
      "type": "object",
      "properties": {
        "title": { "type": "string" },
        "author": {
          "type": "array",
          "items": { "type": "string" },
          "minItems": 1
        },
        "review": {
          "type": "array",
          "items": { "type": "string" },
          "maxItems": 5
        }
      },
      "required": ["title", "author"]
    }
  }
}

Converting XSD-Specific Features

Some XSD features require special handling during conversion.

Handling XSD Enumerations

XSD enumerations map directly to JSON Schema enum keyword:

XSD:

<xs:element name="color">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:enumeration value="red"/>
      <xs:enumeration value="green"/>
      <xs:enumeration value="blue"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

JSON Schema:

{
  "type": "object",
  "properties": {
    "color": {
      "type": "string",
      "enum": ["red", "green", "blue"]
    }
  }
}

Translating Patterns and Regular Expressions

Pattern restrictions map to the pattern keyword in JSON Schema:

XSD:

<xs:element name="zipCode">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:pattern value="\d{5}(-\d{4})?"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

JSON Schema:

{
  "type": "object",
  "properties": {
    "zipCode": {
      "type": "string",
      "pattern": "\\d{5}(-\\d{4})?"
    }
  }
}

Note that JSON Schema uses JavaScript's regular expression syntax, which may require escaping differences from XSD patterns.

Managing XSD Facets

XSD facets map to corresponding JSON Schema validation keywords:

XSD Facet

JSON Schema Keyword

minLength

minLength

maxLength

maxLength

length

minLength + maxLength (same value)

minInclusive

minimum

maxInclusive

maximum

minExclusive

exclusiveMinimum

maxExclusive

exclusiveMaximum

totalDigits

(No direct equivalent)

fractionDigits

multipleOf (in some cases)

Example conversion:

XSD:

<xs:element name="username">
  <xs:simpleType>
    <xs:restriction base="xs:string">
      <xs:minLength value="3"/>
      <xs:maxLength value="20"/>
      <xs:pattern value="[a-zA-Z0-9_]+"/>
    </xs:restriction>
  </xs:simpleType>
</xs:element>

JSON Schema:

{
  "type": "object",
  "properties": {
    "username": {
      "type": "string",
      "minLength": 3,
      "maxLength": 20,
      "pattern": "[a-zA-Z0-9_]+"
    }
  }
}

Addressing XSD Inheritance

XSD supports type inheritance through extension and restriction. In JSON Schema, you can approximate this using:

  • allOf to combine schemas (similar to extension)

  • Property constraints to restrict values (similar to restriction)

XSD with type extension:

<xs:complexType name="PersonType">
  <xs:sequence>
    <xs:element name="name" type="xs:string"/>
    <xs:element name="age" type="xs:integer"/>
  </xs:sequence>
</xs:complexType>
<xs:complexType name="EmployeeType">
  <xs:complexContent>
    <xs:extension base="PersonType">
      <xs:sequence>
        <xs:element name="department" type="xs:string"/>
        <xs:element name="salary" type="xs:decimal"/>
      </xs:sequence>
    </xs:extension>
  </xs:complexContent>
</xs:complexType>

JSON Schema:

{
  "definitions": {
    "PersonType": {
      "type": "object",
      "properties": {
        "name": { "type": "string" },
        "age": { "type": "integer" }
      },
      "required": ["name", "age"]
    },
    "EmployeeType": {
      "allOf": [
        { "$ref": "#/definitions/PersonType" },
        {
          "type": "object",
          "properties": {
            "department": { "type": "string" },
            "salary": { "type": "number" }
          },
          "required": ["department", "salary"]
        }
      ]
    }
  }
}

Converting XSD Groups and AttributeGroups

XSD groups and attributeGroups can be converted to reusable definitions in JSON Schema:

XSD:

<xs:attributeGroup name="DocumentAttributes">
  <xs:attribute name="id" type="xs:ID" use="required"/>
  <xs:attribute name="version" type="xs:string"/>
  <xs:attribute name="language" type="xs:language"/>
</xs:attributeGroup>
<xs:group name="PersonalInfo">
  <xs:sequence>
    <xs:element name="firstName" type="xs:string"/>
    <xs:element name="lastName" type="xs:string"/>
    <xs:element name="email" type="xs:string" minOccurs="0"/>
  </xs:sequence>
</xs:group>
<xs:element name="document">
  <xs:complexType>
    <xs:sequence>
      <xs:group ref="PersonalInfo"/>
      <xs:element name="content" type="xs:string"/>
    </xs:sequence>
    <xs:attributeGroup ref="DocumentAttributes"/>
  </xs:complexType>
</xs:element>

JSON Schema:

{
  "definitions": {
    "DocumentAttributes": {
      "type": "object",
      "properties": {
        "id": { "type": "string" },
        "version": { "type": "string" },
        "language": { "type": "string" }
      },
      "required": ["id"]
    },
    "PersonalInfo": {
      "type": "object",
      "properties": {
        "firstName": { "type": "string" },
        "lastName": { "type": "string" },
        "email": { "type": "string" }
      },
      "required": ["firstName", "lastName"]
    }
  },
  "type": "object",
  "properties": {
    "document": {
      "allOf": [
        { "$ref": "#/definitions/DocumentAttributes" },
        {
          "type": "object",
          "properties": {
            "firstName": { "type": "string" },
            "lastName": { "type": "string" },
            "email": { "type": "string" },
            "content": { "type": "string" }
          },
          "required": ["firstName", "lastName", "content"]
        }
      ]
    }
  }
}

Automated Conversion Tools and Libraries

For large or complex schemas, manual conversion might be impractical. Several tools can help automate the conversion process.

Open-Source Solutions

  1. xsd2jsonschema (Node.js)

    • GitHub: https://github.com/andrewbober/xsd2jsonschema

    • Features: Handles complex schemas, namespace support

    • Installation: npm install xsd2jsonschema

const XsdFile = require('xsd2jsonschema').XsdFile;
const xsd = new XsdFile();
xsd.parse('path/to/schema.xsd');
const jsonSchema = xsd.getJsonSchema();
console.log(JSON.stringify(jsonSchema, null, 2));
  1. xsd-to-json-schema (Node.js)

    • GitHub: https://github.com/fiverr/xsd-to-json-schema

    • Features: Lightweight, focused on XSD to JSON Schema conversion

    • Installation: npm install xsd-to-json-schema


  2. xsd2json (Python)

    • GitHub: https://github.com/DataDog/xsd2json

    • Features: Python-based converter with namespace support

    • Installation: pip install xsd2json

Commercial Tools

Several commercial tools offer XSD to JSON Schema conversion as part of larger schema management platforms:

  1. Altova XMLSpy

    • Comprehensive XML development environment

    • Includes schema conversion capabilities

    • Offers visual editing and conversion


  2. Liquid Technologies XML Studio

    • Schema conversion between multiple formats

    • Visual schema designer

    • Batch processing capabilities


  3. Ceiton XSD/JSON Schema Converter

    • Enterprise-grade schema conversion

    • Supports complex XSD features

    • Integration with data mapping tools

Online Converters

For quick conversions or testing, several online tools are available:

  1. FreeFormatter.com

    • Simple interface for uploading XSD

    • Handles basic schemas well

    • No registration required


  2. Convertjson.com

    • Supports multiple schema versions

    • Simple drag-and-drop interface

    • Limited support for complex schemas


  3. Transform.tools

    • Modern interface with preview capabilities

    • Supports various transformation formats

    • Limited to smaller schemas

Limitations of Automated Tools

While automated tools can save time, they have limitations:

  1. Complex XSD features: Most tools struggle with advanced XSD features like substitution groups, identity constraints, or complex type derivation

  2. Custom mappings: Automated tools follow fixed conversion rules and don't allow for custom mappings

  3. Semantic preservation: Tools may preserve structure but miss semantic nuances

  4. Error handling: Some tools fail silently on unsupported features

  5. Schema optimization: Generated schemas may be verbose and unoptimized

For best results, consider using automated tools for initial conversion, then manually reviewing and optimizing the results.

Get opensource free alternative of postman. Free upto 100 team members!

Step-by-Step Conversion Walkthrough

Let's walk through a complete conversion example, combining automated and manual approaches.

Step 1: Analyzing the Source XSD

Consider this XSD for a product catalog:

<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema"
           targetNamespace="http://example.org/catalog"
           xmlns:cat="http://example.org/catalog"
           elementFormDefault="qualified">
  <xs:element name="catalog">
    <xs:complexType>
      <xs:sequence>
        <xs:element name="product" type="cat:ProductType" maxOccurs="unbounded"/>
      </xs:sequence>
      <xs:attribute name="version" type="xs:string" use="required"/>
    </xs:complexType>
  </xs:element>
  <xs:complexType name="ProductType">
    <xs:sequence>
      <xs:element name="name" type="xs:string"/>
      <xs:element name="description" type="xs:string" minOccurs="0"/>
      <xs:element name="price" type="cat:PriceType"/>
      <xs:element name="category" type="xs:string" maxOccurs="3"/>
      <xs:element name="stock" type="xs:positiveInteger"/>
      <xs:element name="featured" type="xs:boolean" default="false"/>
    </xs:sequence>
    <xs:attribute name="id" type="cat:SKUType" use="required"/>
    <xs:attribute name="available" type="xs:boolean" default="true"/>
  </xs:complexType>
  <xs:complexType name="PriceType">
    <xs:simpleContent>
      <xs:extension base="xs:decimal">
        <xs:attribute name="currency" type="cat:CurrencyCodeType" default="USD"/>
      </xs:extension>
    </xs:simpleContent>
  </xs:complexType>
  <xs:simpleType name="SKUType">
    <xs:restriction base="xs:string">
      <xs:pattern value="[A-Z]{2}-\d{6}"/>
    </xs:restriction>
  </xs:simpleType>
  <xs:simpleType name="CurrencyCodeType">
    <xs:restriction base="xs:string">
      <xs:enumeration value="USD"/>
      <xs:enumeration value="EUR"/>
      <xs:enumeration value="GBP"/>
      <xs:enumeration value="JPY"/>
    </xs:restriction>
  </xs:simpleType>
</xs:schema>

First, analyze the key components:

  • Root element: catalog with version attribute

  • Complex types: ProductType, PriceType

  • Simple types: SKUType, CurrencyCodeType

  • Validation constraints: patterns, enumerations, cardinality

  • Namespace: http://example.org/catalog

Step 2: Identifying Conversion Challenges

Several challenges in this schema require attention:

  1. Handling the namespace

  2. Converting the PriceType with simple content extension

  3. Preserving pattern validation for SKUs

  4. Mapping attribute defaults

  5. Converting cardinality constraints

Step 3: Creating the JSON Schema Structure

Let's create the JSON Schema:

{
  "$schema": "http://json-schema.org/draft-07/schema#",
  "title": "Product Catalog",
  "description": "Schema for product catalog data",
  "$id": "http://example.org/catalog",

  "definitions": {
    "SKUType": {
      "type": "string",
      "pattern": "[A-Z]{2}-\\d{6}"
    },
    "CurrencyCodeType": {
      "type": "string",
      "enum": ["USD", "EUR", "GBP", "JPY"]
    },
    "PriceType": {
      "type": "object",
      "properties": {
        "value": { "type": "number" },
        "currency": {
          "$ref": "#/definitions/CurrencyCodeType",
          "default": "USD"
        }
      },
      "required": ["value"]
    },
    "ProductType": {
      "type": "object",
      "properties": {
        "id": { "$ref": "#/definitions/SKUType" },
        "available": {
          "type": "boolean",
          "default": true
        },
        "name": { "type": "string" },
        "description": { "type": "string" },
        "price": { "$ref": "#/definitions/PriceType" },
        "category": {
          "type": "array",
          "items": { "type": "string" },
          "minItems": 1,
          "maxItems": 3
        },
        "stock": {
          "type": "integer",
          "minimum": 1
        },
        "featured": {
          "type": "boolean",
          "default": false
        }
      },
      "required": ["id", "name", "price", "stock", "category"],
      "additionalProperties": false
    }
  },

  "type": "object",
  "properties": {
    "catalog": {
      "type": "object",
      "properties": {
        "version": { "type": "string" },
        "product": {
          "type": "array",
          "items": { "$ref": "#/definitions/ProductType" },
          "minItems": 1
        }
      },
      "required": ["version", "product"],
      "additionalProperties": false
    }
  },
  "required": ["catalog"]
}

Step 4: Validating the Converted Schema

Validate the JSON Schema using a validator like ajv:

const Ajv = require('ajv');
const ajv = new Ajv({allErrors: true});
const validate = ajv.compile(jsonSchema);
const valid = validate(jsonData);
if (!valid) console.log(validate.errors);

Step 5: Testing with Sample Data

Create sample JSON data to test the schema:

{
  "catalog": {
    "version": "1.0",
    "product": [
      {
        "id": "AB-123456",
        "name": "Smartphone",
        "price": {
          "value": 499.99,
          "currency": "USD"
        },
        "category": ["Electronics", "Gadgets"],
        "stock": 50,
        "featured": true
      },
      {
        "id": "CD-654321",
        "name": "Laptop",
        "description": "Powerful laptop for professionals",
        "price": {
          "value": 1299.99, "currency": "EUR"
      },
        "category": ["Electronics", "Computers"],
        "stock": 25
      }
    ]
  }
}
Verify that this data validates against our JSON Schema to ensure the conversion is working correctly.
## Advanced Conversion Scenarios
Beyond basic conversion, several complex scenarios require special handling.
### Handling Recursive Structures
XSD supports recursive structures through element references. In JSON Schema, we use `$ref` references to achieve the same effect:
**XSD with recursion:**
```xml
<xs:element name="category">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="name" type="xs:string"/>
      <xs:element ref="category" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

JSON Schema:

{
  "definitions": {
    "category": {
      "type": "object",
      "properties": {
        "name": { "type": "string" },
        "category": {
          "type": "array",
          "items": { "$ref": "#/definitions/category" }
        }
      },
      "required": ["name"]
    }
  },
  "type": "object",
  "properties": {
    "category": { "$ref": "#/definitions/category" }
  }
}

Managing Mixed Content Models

XSD's mixed content model doesn't have a direct equivalent in JSON Schema. Common approaches include:

  1. Converting to arrays with type indicators

  2. Using object representations with separate properties for text and elements

  3. Annotating content with special markers

Example approach using arrays:

XSD with mixed content:

<xs:element name="paragraph">
  <xs:complexType mixed="true">
    <xs:sequence>
      <xs:element name="emphasis" type="xs:string" minOccurs="0" maxOccurs="unbounded"/>
      <xs:element name="link" type="LinkType" minOccurs="0" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

JSON Schema:

{
  "type": "object",
  "properties": {
    "paragraph": {
      "type": "array",
      "items": {
        "oneOf": [
          {
            "type": "string",
            "description": "Text content"
          },
          {
            "type": "object",
            "properties": {
              "emphasis": { "type": "string" }
            },
            "required": ["emphasis"],
            "additionalProperties": false
          },
          {
            "type": "object",
            "properties": {
              "link": { "$ref": "#/definitions/LinkType" }
            },
            "required": ["link"],
            "additionalProperties": false
          }
        ]
      }
    }
  }
}

Dealing with XSD Substitution Groups

XSD substitution groups allow element substitution based on a head element. In JSON Schema, we can use oneOf or anyOf to achieve similar functionality:

XSD with substitution group:

<xs:element name="person" type="PersonType" abstract="true"/>
<xs:element name="employee" type="EmployeeType" substitutionGroup="person"/>
<xs:element name="customer" type="CustomerType" substitutionGroup="person"/>
<xs:element name="contacts">
  <xs:complexType>
    <xs:sequence>
      <xs:element ref="person" maxOccurs="unbounded"/>
    </xs:sequence>
  </xs:complexType>
</xs:element>

JSON Schema:

{
  "definitions": {
    "PersonType": {
      "type": "object",
      "properties": {
        "name": { "type": "string" },
        "email": { "type": "string" }
      },
      "required": ["name"]
    },
    "EmployeeType": {
      "allOf": [
        { "$ref": "#/definitions/PersonType" },
        {
          "properties": {
            "department": { "type": "string" },
            "employeeId": { "type": "string" }
          },
          "required": ["employeeId"]
        }
      ]
    },
    "CustomerType": {
      "allOf": [
        { "$ref": "#/definitions/PersonType" },
        {
          "properties": {
            "customerId": { "type": "string" },
            "loyaltyPoints": { "type": "integer" }
          },
          "required": ["customerId"]
        }
      ]
    }
  },
  "type": "object",
  "properties": {
    "contacts": {
      "type": "object",
      "properties": {
        "person": {
          "type": "array",
          "items": {
            "oneOf": [
              { "$ref": "#/definitions/EmployeeType" },
              { "$ref": "#/definitions/CustomerType" }
            ]
          },
          "minItems": 1
        }
      },
      "required": ["person"]
    }
  }
}

Converting Complex Validation Rules

Some XSD validation rules, like co-occurrence constraints, require creative approaches in JSON Schema:

XSD with xs:assert:

<xs:element name="shipment">
  <xs:complexType>
    <xs:sequence>
      <xs:element name="international" type="xs:boolean"/>
      <xs:element name="customsId" type="xs:string" minOccurs="0"/>
    </xs:sequence>
    <xs:assert test="if (international) then customsId else true()"/>
  </xs:complexType>
</xs:element>

JSON Schema using if/then:

{
  "type": "object",
  "properties": {
    "shipment": {
      "type": "object",
      "properties": {
        "international": { "type": "boolean" },
        "customsId": { "type": "string" }
      },
      "required": ["international"],
      "if": {
        "properties": {
          "international": { "const": true }
        }
      },
      "then": {
        "required": ["customsId"]
      }
    }
  }
}

Preserving Documentation and Annotations

XSD's documentation elements should be converted to JSON Schema annotations:

XSD with documentation:

<xs:element name="user">
  <xs:annotation>
    <xs:documentation>User information for the system</xs:documentation>
  </xs:annotation>
  <xs:complexType>
    <xs:sequence>
      <xs:element name="username" type="xs:string">
        <xs:annotation>
          <xs:documentation>Unique username (5-20 characters)</xs:documentation>
        </xs:annotation>
      </xs:element>
    </xs:sequence>
  </xs:complexType>
</xs:element>

JSON Schema:

{
  "type": "object",
  "properties": {
    "user": {
      "type": "object",
      "description": "User information for the system",
      "properties": {
        "username": {
          "type": "string",
          "description": "Unique username (5-20 characters)"
        }
      },
      "required": ["username"]
    }
  }
}

Best Practices for Schema Conversion

Following these best practices will help ensure successful schema conversion:

Maintaining a Clean and Readable JSON Schema

  1. Use consistent indentation and formatting

  2. Group related schemas within definitions

  3. Follow naming conventions consistently

  4. Minimize nesting levels where possible

  5. Use descriptive titles and descriptions

Documenting Conversion Decisions

Keep track of your conversion decisions, especially for complex features:

{
  "title": "ConversionNotes",
  "description": "This schema uses the following conversion patterns:",
  "conversionNotes": [
    "XSD mixed content converted to arrays with oneOf validation",
    "Substitution groups implemented using oneOf with type property",
    "Co-occurrence constraints implemented with if/then/else",
    "Namespace prefixes removed for cleaner property names"
  ]
}

Establishing Naming Conventions

Consistent naming helps maintain clarity:

  1. CamelCase for properties (matching JSON conventions)

  2. PascalCase for type definitions (similar to XSD types)

  3. Consistent pluralization for array properties

  4. Descriptive names that avoid abbreviations

Testing Validation Equivalence

Ensure that your converted schema validates the same documents:

  1. Generate sample data that tests all validation rules

  2. Create boundary test cases that check constraint limits

  3. Test with invalid data to ensure validation errors are caught

  4. Compare validation results between XML and JSON

Version Control for Schemas

Implement proper version control for your schemas:

  1. Maintain a schema repository with version history

  2. Document changes between versions

  3. Use semantic versioning to indicate breaking changes

  4. Link XSD and JSON Schema versions for traceability

Post-Conversion Optimization

After basic conversion, optimize your JSON Schema for better usability and performance.

Simplifying Verbose Structures

Look for opportunities to simplify the schema:

Before optimization:

{
  "type": "object",
  "properties": {
    "person": {
      "type": "object",
      "properties": {
        "personalData": {
          "type": "object",
          "properties": {
            "name": {
              "type": "object",
              "properties": {
                "firstName": { "type": "string" },
                "lastName": { "type": "string" }
              },
              "required": ["firstName", "lastName"]
            }
          },
          "required": ["name"]
        }
      },
      "required": ["personalData"]
    }
  }
}

After flattening:

{
  "type": "object",
  "properties": {
    "person": {
      "type": "object",
      "properties": {
        "firstName": { "type": "string" },
        "lastName": { "type": "string" }
      },
      "required": ["firstName", "lastName"]
    }
  }
}

Adding JSON Schema-Specific Enhancements

Add JSON Schema features that weren't in the original XSD:

  1. Format validators for string types: "format": "email", "format": "uri"

  2. Content encoding information: "contentEncoding": "base64"

  3. Media type indicators: "contentMediaType": "image/png"

  4. Default values where appropriate

  5. Examples to illustrate valid data

{
  "type": "object",
  "properties": {
    "user": {
      "type": "object",
      "properties": {
        "email": {
          "type": "string",
          "format": "email",
          "examples": ["user@example.com"]
        },
        "profileImage": {
          "type": "string",
          "contentEncoding": "base64",
          "contentMediaType": "image/jpeg"
        },
        "website": {
          "type": "string",
          "format": "uri"
        }
      }
    }
  }
}

Performance Considerations

Optimize your schema for validation performance:

  1. Minimize use of complex patterns that require regex evaluation

  2. Avoid deeply nested allOf, anyOf, oneOf combinations

  3. Combine related validations where possible

  4. Use appropriate types instead of pattern validation when possible

  5. Limit the depth of $ref resolution chains

Improving Developer Experience

Add features that make the schema more useful for developers:

  1. Descriptive error messages using errorMessage

  2. Examples of valid values

  3. Enum descriptions to explain options

  4. Contextual documentation within the schema

  5. Consistent property ordering for readability

{
  "type": "object",
  "properties": {
    "orderStatus": {
      "type": "string",
      "enum": ["pending", "processing", "shipped", "delivered", "canceled"],
      "enumDescriptions": {
        "pending": "Order received but not yet processed",
        "processing": "Order is being prepared for shipping",
        "shipped": "Order has been shipped to the delivery address",
        "delivered": "Order has been delivered to the recipient",
        "canceled": "Order has been canceled"
      },
      "errorMessage": "Status must be one of the allowed order statuses",
      "examples": ["processing"]
    }
  }
}

Conclusion

Converting XML Schema (XSD) to JSON Schema is both a technical challenge and a strategic opportunity. While the conversion process involves addressing numerous differences between the two schema languages, a successful conversion can bridge traditional XML-based systems with modern JSON-based applications.

Summary of Key Conversion Strategies

  1. Understand both schema languages thoroughly before attempting conversion

  2. Map common structures first, then address special cases

  3. Preserve semantic validation even when syntax differs

  4. Document conversion decisions for future maintenance

  5. Test extensively with real-world data

  6. Optimize for readability and performance after initial conversion

When to Use Automated vs. Manual Approaches

Choose your approach based on your specific needs:

Favor automated conversion when:

  • You have a large number of schemas to convert

  • The schemas are relatively standard and straightforward

  • You need a quick starting point for further refinement

  • You have an ongoing need to generate schemas

Favor manual conversion when:

  • Precision and optimization are critical

  • Schemas contain complex or unusual structures

  • You need to significantly reshape the data model

  • You have specific requirements not handled by automated tools

For many projects, a hybrid approach works best: use automated tools for initial conversion, then manually refine the results.

Future-Proofing Your Schema Conversion

As both XML Schema and JSON Schema continue to evolve, consider these strategies for future-proofing:

  1. Follow schema best practices in both formats

  2. Minimize dependencies on version-specific features

  3. Document thoroughly to preserve knowledge

  4. Build automated tests to verify equivalence

  5. Stay informed about schema standards evolution

By thoughtfully addressing the challenges of schema conversion, you can build a bridge between XML and JSON ecosystems, enabling more flexible and interoperable data exchange while preserving the validation rigor that makes schemas valuable.

Whether you're modernizing legacy systems, building new APIs, or creating hybrid architectures, the ability to convert between schema languages effectively is a valuable skill that can significantly enhance your organization's data integration capabilities.

FAQs

Why should you choose Qodex.ai?

Remommended posts
